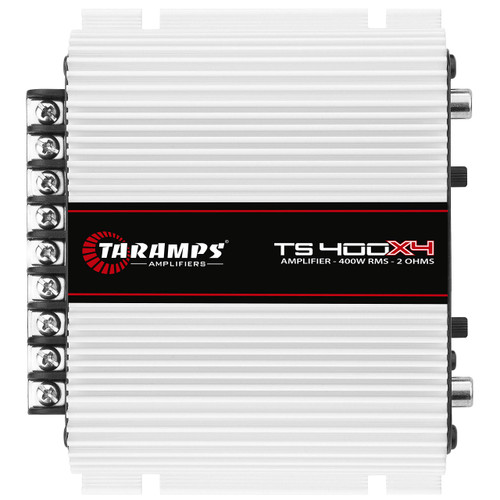

Taramp's TS 400X4 2 Ohms 4 Channel 400 Watts Class D Full Range Amplifier

Description

The TS Series amps by Taramp's are some of the best-seller amps in the world, with a solid reputation for delivering high performance audio with power and zero distortion, in an extremely compact size. Technical Specs: Number of Channels: 04Maximum Power:@ 13.8 VDC - 2 OHMS - 400 W RMS (4 x 100W RMS)@ 13.8 VDC-4 OHMS - 252 W RMS (4 x 63W RMS)Bridged @ 13.8 VDC - 4 OHMS - 400W RMS (2 x 200W RMS)Input Sensitivity: 200mV (Vol=Max)Signal to Noise Ratio: > 90dBFrequency Response: (Full Range): 18Hz to 30kHz (-1dB)High Pass Crossover (HPF): 90Hz (-12dB / 8th)Low Pass Crossover (LPF): 90Hz (-12dB / 8th)Input Impedance: 22K OHMSThermal Protection System and Short OutputMinimum Supply Voltage: 8 VDCMaximum Supply Voltage: 16 VDCStandby Power: 0.8 Amp.Maximum Musical Power: @ 13.8VDC: 16.5 Amp.Maximum Consumption in Sine Signal: (1kHz) 13.8VDC: 33 Amp.Dimensions (WxDxH): 138 x 49 x 121mmWeight: 0.6kg Read more Read more
