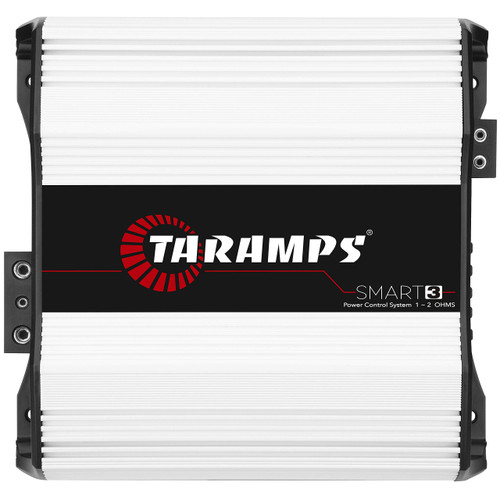

Taramps Smart 3 1~2 Ohms 3000 Watts Class D Mono Amplifier

Description

Taramp's Smart 3 amplifier uses their latest technology to deliver 3000 Watts of competition level sound at 1 or 2 ohms. It is designed to provide high performance with optimal power and sound quality aimed at the international music market. Technical Specs: Number Of Channels: 01Maximum Power:@ 12.6 VDC - 1 OHM: 3000W RMS@ 12.6 VDC - 2 OHMS: 3000W RMS@ 12.6 VDC - 4 OHMS: 2000W RMSInput Sensitivity: 0.22V ~ 4VSignal to Noise Ratio: >90dBFrequency Response: 10Hz ~ 10KHz (-3dB)Crossover High Pass (Hpf): 10Hz ~ 90Hz (-12dB/8ª) VariableCrossover Low Pass (Lpf): 90Hz ~ 10KHz (-12dB/8ª) VariableBass Boost: Freq.: 35Hz ~ 55Hz, Boost: 0 ~ +10dBEfficiency: 79%Input Impedance: 10K OhmsProtection System: Output short-circuit, low/high supply voltage and thermal protectionMininum Supply Voltage: 9 VDCMaximum Power Rating: 16 VDCConsumption At Rest: 2.40 AMusical Maximum Consumption: 150 AMaximum Consumption in Sinusoidal Signal: 300 ADimensions (WxDxH): 8.98" x 2.76" x 9.37"Weight: 5.72 lb Read more Read more
