Description

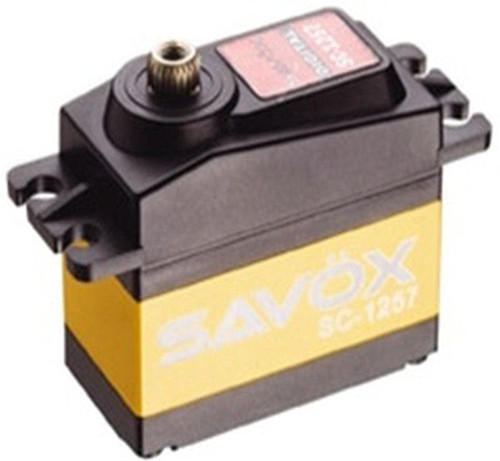

Dimensions(mm): 40.3x20.2x37.2Weight(g): 52.4Speed(@4.8V sec/60): .09Torque(@4.8V oz-in): 111.1Speed(@6.0V sec/60): .07Torque(@6.0V oz- in): 138.9Gear: Titanium and AluminumBearing: 2BBCase: Aluminum25 Tooth SplineFrequency: 250-333hzPulse Width Frequency: 1520Operating Temperature Range (C) -10-50Operating Voltage Range (V): 4.5-6.0Running current (at no load): 100 mA @ 4.8VRunning current (at no load): 120 mA @ 6.0VStall current (at locked): 4000 mA @ 4.8VStall current (at locked): 5000 mA @ 6.0VIdle current (at stopped): 5 mA @ 4.8VIdle current (at stopped): 5 mA @ 6.0VLimit angle: 200°±10°Connector wire gauge: ＃22 AWGConnector wire length: 250 ±5 mmHorn gear spline: 25TControl system: Pulse width modificationAmplifier type: Digital ControllerOperating Trave: 100° (when 1000→2000 μsec)Neutral position: 1500 μsecDead band width: 3 μsecRotating direction: Counterclockwise (when 1500→2000 μsec)Pulse width range: 800→2200 μsecMaximum travel: Approx 130° (when 900→2100 μsec) From the Manufacturer This is the Savox SC-1257TG Super Speed Titanium Gear Digital Servo. Combines leading edge technology with super high 12 bit (4096) resolution and titanium gears. Super light-weight. Coreless motor provides high speed, incredible efficiency, and low power consumption. Extremely strong titanium gears. The aluminum case design not only looks good but also allows for lower operating temperatures. Our servos are totally green from materials to production. Ideal for CCPM on 600 and 700 class heli, steering servo on 1/10 scale buggies.
