Description

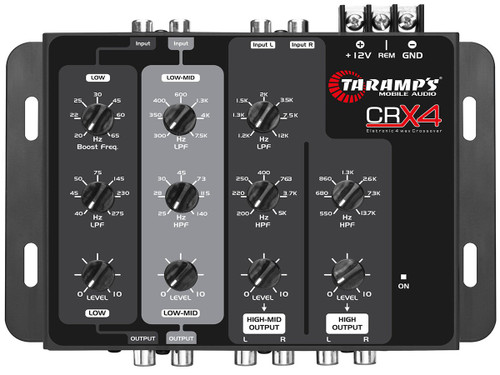

The CRX4 Compact crossover is designed for the audio enthusiast with competition-level sound in mind. It delivers enhanced audio with greater quality, optimizing output with customizable sound adjustments. Technical Specs 12dB / 8th 4-way electronic crossoverHarmonic distortion (THD): less than 0.01%Maximum input level: 8 voltsMaximum output level: 8 voltsSeparation between channels: greater than 80dBWorking voltage: 10 to 15.5V DCInput impedance: 27K OhmsOutput impedance: 470 OhmsCrosstalk (separation between channels):> ÃÃ80dBNominal consumption: 380 mAPower supply: with DC-DC converter switchedElectronic protection: reversal of polarityRecommended wiring gauge is 1.5mm for positive / negative wires, and 0.75mm for remote wireWidth: 190 mmHeight: 145 mmDepth: 40 mm Via Low (subwoofers) LPF filter: adjustable from 40Hz to 275Hz with 12dB / 8thBassBoost: adjustable from 20 to 65Hz, fixed at + 6dB Via Mid-Low (woofers or midbass) LPF filter: adjustable from 300 to 7.500Hz with 12dB / 8ªHPF filter: adjustable from 25 to 140Hz with 12dB / 8ª Via Mid-High (drivers) LPF filter: adjustable from 1,200 to 12,000Hz with 12dB / 8ªHPF filter: adjustable from 200 to 4.600Hz with 12dB / 8ª Via High (Super tweeter) HPF filter: adjustable from 550 to 12,000Hz with 12dB / 8th Read more Read more
