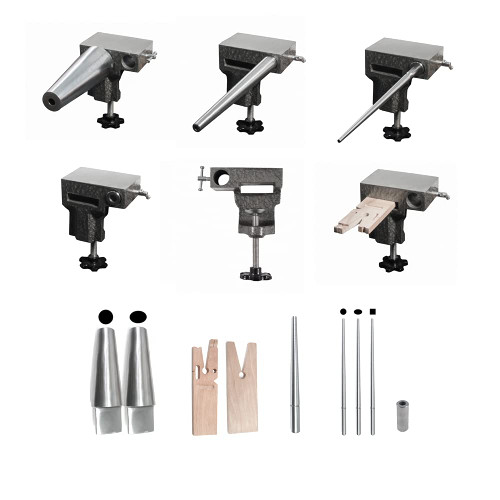

The Ultimate Bench Anvil Combination Kit includes: 1 ring mandrel, 2 different
style wooden bench pins 2 bracelet mandrels, a round and an oval, 1 bezel
mandrel adapter 3 bezel mandrels,1 round,1 oval, and 1 square. 1 bench
mounting system which has a flat anvil surface on top The anvil top offers
approximately 4 1/2 x 2 3/4 inches of work space. The bench anvil kit can
clamp to a table up to 2.25” (5.7 cm) thick. The ring mandrel is hardened
steel, perfect for forming and hammering on, and has U.S. sizes 1-15 marked on
it. It is 8.75” (22.2 cm) long plus the tang and is secured into the system
with a thumb screw. The metal bezel mandrel adapter fits into the system to
hold a bezel mandrel securely while you work. It has two different size holes
for mandrel placement. One opening is approx. 12.39 MM, and fits our bezel
mandrels. And the other is approx. 8.39 MM. Also included are three bezel
mandrels, round, oval, and square, they are made of hardened tool steel with a
smooth finish and even taper. The round bezel mandrel is approximately 1/4 -
5/8" (approximately 6.35-15.88 mm). The oval bezel mandrel is approximately
5x6 - 11x12.5 mm. The square is approximately 5x5 - 8x8 mm. The first hardwood
bench pin measures 6 x 2 x 5” (15.3 x 5 x 12.7 cm) and is cut with a V-slot.
The second hardwood bench pin measures 7 1/4 x 2 x 1 and has a round and an
oblong cut out in addition to two v-slots and square and half round sawing
support. This makes it ideal for uses like ring sizing, piercing and stone
setting. Both of the bracelet mandrels are hardened steel. The oval measures
6” (15.3 cm) long plus the tang. The round one is also 6" (15.3 cm). Both
measure approximately 7 inches by the tang and 4 inches by the tip. The bench
pin and the bracelet mandrels fit perfectly into the opening under the anvil
(not at the same time) and are held securely when the whole device is clamped
to a table with the screw mechanism.
