Description

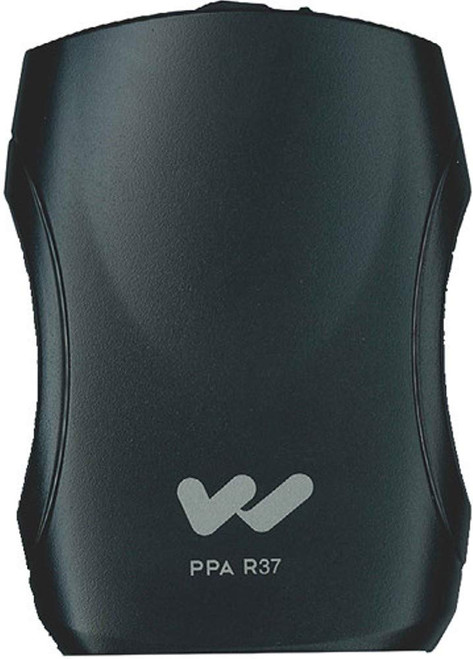

Williams Sound PPA R37N PPA Select FM Receiver with Belt Clip Fits PPA T46,
PPA T45, PPA T45NET and PPA T27 transmitters, Seek-button access to all 17
wideband frequencies in the 72-76 MHz bandwidthFlexible and simple. The PPA
Select FM receiver features easy-to-use, seek-button channel selection with
access to 17 pre-set wideband frequencies between 72-76 MHz. Digitally
synthesized for even greater audio clarity and stability. A versatile 3.5mm
stereo/mono jack allows for a variety of earphone and headphone options, and
is neckloop/telecoil-equipped-hearing-aid compatible Key FeaturesFits PPA T46,
PPA T45, PPA T45NET and PPA T27 transmittersSeek-button access to all 17
wideband frequencies in the 72-76 MHz bandwidthChannel-lock capabilityBattery-
saving sleep modeLow-battery indicatorField tunableIncludes: (1) PPA R37N
Receiver and (1) CLP 015 Belt Clip SpecificationsDimensions: 4.1" x 2.85" x
1.38"Weight: 4.6oz (130g) w/batteries. 2.6oz (73g) w/o batteriesBattery Type:
(2) AA Alkaline or 2 x AA NiMHCurrent Consumption: 52mA nominalTemperature
Range: – 0 to 50°CIntermediate Freq.: 75 kHzFM Deviation: 75 kHzDe-Emphasis:
75 µSAFC Range: ± 120 kHzSensitivity: 2 µV at 12 dB Sinad with squelch
defeatedInput Overload: 100 mVFrequency Response: 200 – 15 kHzModulation: FM,
+/- 75 kHz peak deviationSignal-to-Noise Ratio: 65 dB min @ 100 uVReceive
Antenna: Integral with earphone/headphone cordAudio Output: 35 mW max, peak
into 16 ohmsAuto Shut-off Enters sleep mode after approx 6 mins of no RF
signal
