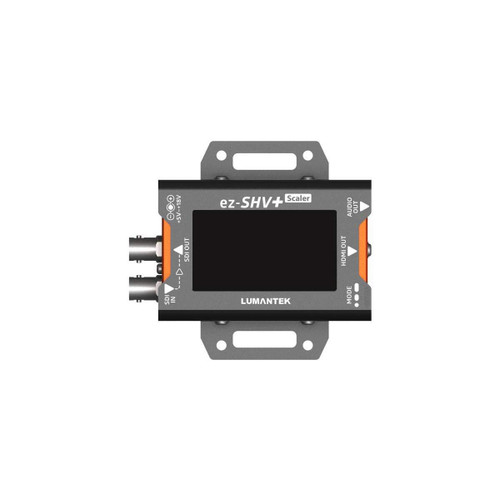

Lumantek SDI to HDMI Converter with Display & Scaler LUM-ez-SHV+

Description

You can easy to monitor in/output resolution, cable length and eye-pattern at once. LUMANTEK's ez-SHV+ has a SDI LOOP output. Through the LCD screen, you can monitor incoming video. By using the 'dip switch', you can select the resolution from 480i to 1080p. You can also control the LCD Brightness and screen ratio.24/7 Video MonitoringThrough the 2.7" TFT LCD screen, you can monitoring Eye-Pattern, In/output source resolution, and Cable length at immediately.Audio Level MeterIt is easy to check what is being played on the LCD screen. You can also check the sound through the audio level meter on the screen what is being played.Wall mountableez-SHV+ has a wall mount option. You can alternative choose to set up at wall or not by changing side bracket.Detect Cable Length Automaticallyez-SHV+ detects cable length automatically up to 190 m at 3G-SDI. Cable length will be shown as 'SHORT', 'MEDIUM' and 'LONG'.Low Power ConsumptionThe Maximum power consumption of ez- SHV+ is less than 3 watts. Acceptable voltage ranges from 5v - 18v giving the user more flexibility while connecting electricity.Mirrored output for teleprompterIt can be vertically flip(mirrored) the HDMI output by pressing the mode switch for more than 6 seconds while the LCD OFF. It is perfect to used for teleprompter and supports only HD resolutions.
