Description

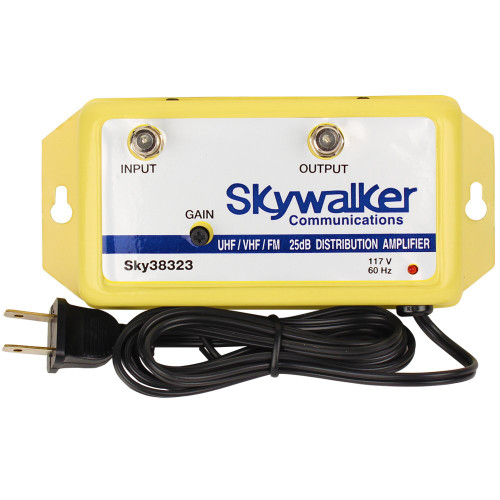

The SKY38323 is designed to amplify or boost an off air TV signal. The unit
has variable gain via a control on the front panel (up to 25dB of gain VHF
frequencies 21db for UHF frequencies). The product has a metal case for
durability and connections are made using standard F type connectors for the
in/out ports. Contains a built in power supply that is designed to connect to
a standard 120 volt/ 60hz AC outlet. An on/off status light is visible on the
front panel. Features: Enjoy the control of variable gain (with up to 25dB of
gain) in VHF / UHF / FM bands. Low operation interference and minimal noise
production & adjustment gain control Bandwidth: 47-1000MHz || Maximum Input:
VHF 40dB MV / UHF 20dB MV || Gain: VHF 25dB / UHF 21dB Heavy-duty metal
housing with built-in mounting screw holes & power indicator light Please
note: When using this product a proper signal path must be established. System
With No Pre-Amplifier: The SKY38323 must be installed immediately before any
distribution splitter that supplies signals to your TV’s. The proper signal
path is: Antenna> coax> amplifier> splitter> TV’s. System With Pre-Amplifier:
The SKY38323 must be installed after the power inserter that supplies voltage
to your preamp. Failure to do this correctly will block the DC voltage from
getting to the preamp and you will have no picture. Also, you risk damaging
the SKY38323. The proper signal path is : Antenna> preamp> coax> power
inserter> amplifier> splitter> TV’s. It is very important that your antenna is
pointed correctly, all fittings are properly installed and that you have used
the proper coax cable. RG-6 is the only cable we recommend for this purpose.
