Description

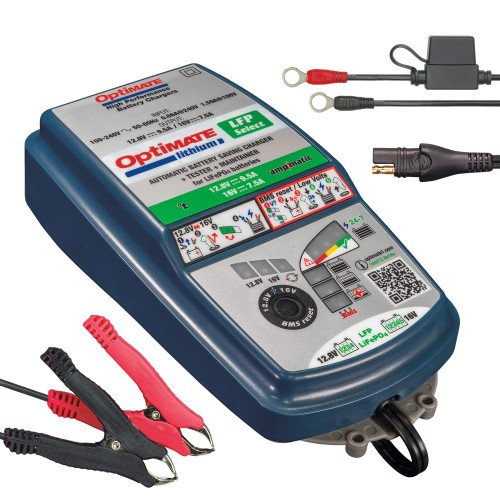

The ultimate battery charger for 12. 8V (4s) & 16V (5s) LiFePO4 / LFP
batteries! OptiMate Lithium LFP Select is perfect for high performance
batteries that demand, auto-fast, temp. controlled charging! Program steps -
STEP1: Low Volt Start (0. 5V). STEP2: TEST before CHARGE STEP3: Temperature
check. STEP4: Ultra LOW VOLT SAVE. STEP5: LOW VOLT SAVE cell monitoring.
STEP6: TEST cell damage. STEP7: Cell-balancing CHARGE. STEP8: OPTIMIZE. STEP9:
TEST after CHARGE. STEP10: OptiMate maintenance. Perfect for 12. 8V / 16V
LiFePO4 / LFP batteries sized from 2. 5 to 200 Ah. Power saving stand-by mode.
Full electronic protection against errorsSpecial features: Battery SAVE mode
with BMS reset : starts from 0. 5V with continuous monitoring / testing of
charge acceptance or bad / shorted cell condition. Unnecessary (and unsafe)
charging of a bad battery is prevented. safeTº : Automatic charge rate
adjustment to ambient temperature sensed at the charger. Reduced charging
below freezing, no charging if temperature is below -20ºC/-4ºF (can damage
lithium batteries). Ampmatic : Microprocessor adjusts current to ideal LiFePO4
charge curve to match battery size / condition, for fastest and most complete
charge. Protection against incorrect voltage selection : With 16V selected and
a 12. 8V (4s) battery is connected OptiMate 7 LFP Select will immediately warn
that a low voltage is sensed and then not proceed to charging. USER must
confirm the nominal voltage of the connected battery is 16V (5s) before SAVE
mode activates. During SAVE mode the charge curve is tracked, if the battery
appears to be less than a 5-series 16V battery, it will stop charging. SAFE:
No risk of overcharging. Totally safe for vehicle electronics. Sparks
suppressed. Safe for long-term battery maintenance. Automatic shut-down if
short-circuited or battery disconnected. 3-year limited replacement .
