Description

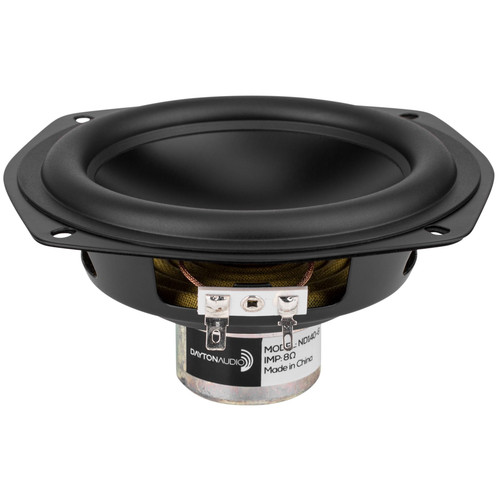

Quick Overview Dayton Audios ND140-8s compact aluminum cone demonstrates the latest advances in high-excursion design processes. Its compact size and high output make it perfect for your next point-source or line array speaker project. Product Highlights Extended-range 54 Hz to 8 kHz performance Rubber- edged aluminum alloy cone Large excursion capability 4 mm Xmax, 20 mm peak Self-shielded Neo-Balanced motor structure 1" 4-layer underhung voice coil with polyimide former 40 watts RMS power handling Product Manuals / Spec Sheets / Downloads Dayton Audio ND140-8 Specification Sheet Dayton Audio ND140-8 Data Files AddThis Sharing Buttons Share to FacebookFacebook Share to TwitterTwitter Share to MoreAddThis Dayton Audios ND140-8s compact aluminum cone drivers demonstrate the latest advances in high- excursion design processes. An efficient, low-distortion Neo-Balanced motor is combined with a rigid yet lightweight aluminum diaphragm, yielding impressive high-impact audio reproduction. Perfect for single point-source applications, or combined in multiples and line arrays. OPTIMUM CABINET SIZE Sealed Volume 0.36 ft.³ Sealed F3 75 Hz Vented Volume 0.84 ft.³ Vented F3 37 Hz Enclosure volume/F3s based on BassBox "optimum" calculations Product Details Speaker Series ND Series Model Number ND140-8 List Price $39.99 Color Black Unit of Measure Each UPC Warranty - Parts 5 Years Warranty - Labor 5 Years Product Shipping Weight (lbs.) 0.95 Speaker Type Midrange Nominal Diameter 5.25" Power Handling (RMS) 40 watts Power Handling (max) 80 watts Continuous Program Power -- Impedance 8 ohms Sensitivity 84.5 dB @ 2.83V/1m
