Description
Redesigned to match similar gain of traditional bulky,
unsightly mechanical antennas, the AT-400BV with multi-direction, High Gain
reception and Smartpass Technology amplifies your range, from 0, 60 and 70
miles from broadcast origination source! Assuring you more channel reception

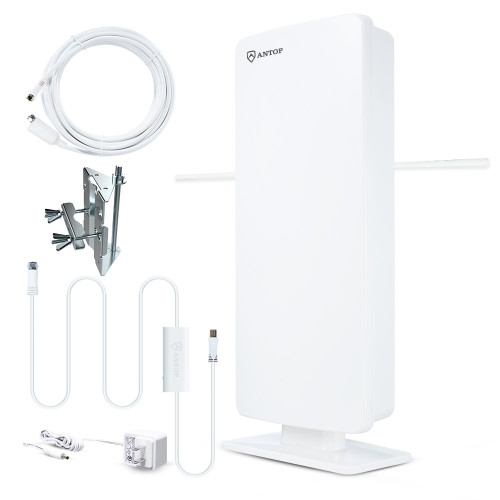

and less blind spots. WHATâS IN THE BOX 1)Antenna; 2)Power Inserter with Smart
Switch; 3)AC/DC Power Adapter; 4)Indoor Stand; 5) VHF Enhanced Rods; 6)39ft
Coaxial Cable; 7)Wall/Pole Mounting Kit; 8)Instruction/User Manual;
9)Instrucciones de InstalaciÃn en EspaÃol TECHNICAL SPECIFICATION Frequency
range: VHF:87.5-230MHz , UHF:470-700MHz Gain: 10dB or 33dB Max Output
Level:100dBV Impedance:75© Noise figure:â3.5dB Reception Pattern: Multi-
directional Polarization: Horizontal/Vertical Smart Switch - Off: non-
amplified Smart Switch - On: amplified with DC 12V via power adapter ANTOPâs
Exclusive Smartpass Amplifier System & 4G/LTE Filter SMARTPASS AMPLIFIER
SYSTERM- No hesitation any more on deciding between a short range and long
range antenna! ANTOPâs Smartpass Amplifier, an exclusive technology offered
only by ANTOP, uses an all-in-one design to allow an easier connection and
more possibilities in different receiving ranges. - Switch-off: Yellow
light indicates short range reception - Switch-on: Green light
indicates long range reception 4G/LTE FILTER â ANTOP was the first antenna
manufacturer to include a built in filter to block 3G and 4G wireless signals
to ensure noise-free digital TV reception. Quick & Easy Set-up 1) Connect the
coaxial cable with the antenna and Power Inserter. 2) Plug the other end of
Power Inserter into a TV. 3) Connect the Power Inserter to power. 4) Switch
the Power Inserter Off->Adjust the antenna positioning-> scan the channels. 5)
Switch the Power Inserter On->Adjust the antenna positioning-> scan the
channels 6) Enjoy your TV shows. 7) If to strengthen VHF reception, fix the
VHF enhanced rods onto the antenna. NOTE: The antenna can work as passive if
to exclude the Power Inserter in connection. The antenna must be powered for
function on amplifier! Multiple Installation Options Full mounting kit
included for easy installation. 1) Roof top 2) Wall mounting 3) Attic mounting
4) Balcony 5) Table standing Antenna Effectiveness Obstacles such as trees,
buildings, and mountains can impact an antennaâs performance. Position the
antenna to face broadcast tower, in a location as high as possible, with a
clear path as possible between the antenna and broadcasting towers.
