JLD Acoustic Guitar Bridge Pins AN3695

Description

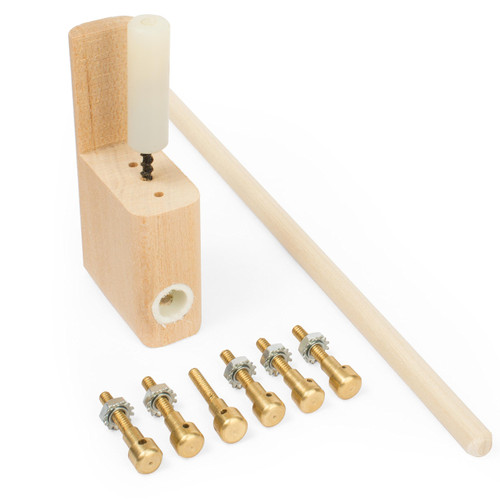

The JLD Bridge Doctor Enhances volume Flattens 'bellied' soundboards A unique solution to a common bridge problem, this spruce device attaches beneath a guitar bridge. An adjustable spruce "pressure post" rests against the tailblock, providing leverage to flatten the soundboard. The spruce block is 3/4" x 1-5/8" x 3-3/8" tall. The 1/4"-diameter tension rod is 9" long. The mounting post has three different positions to accomodate a variety of bridge styles. Brass pin mount version: The pin-mounted version of the JLD Bridge Doctor attaches beneath the bridge using a threaded brass bridge pin. The strings mount horizontally through the tops of the matching brass bridge pins (included). An adjustable spruce pressure post rests against the tailblock, providing leverage to flatten the soundboard. Better bridge contact and alignment can also enhance sound projection. StewMac Tech Tip: We recommend the brass pin mount version for 12-string guitars. Installation instructions included.
