Quick Overview The Dayton Audio Classic Series subwoofers offer solid value at
lower price points. No compromises were made in the design, materials, or
construction of these rugged 4-ohm powerhouses. Product Highlights Sturdy
stamped steel frame Vented pole piece and bumped back plate Inductance-
reducing copper pole piece cap Treated non-pressed paper/Kevlar cone with
rubber surround 4-layer VC with polyimide former Great for home and automotive
applications Product Manuals / Spec Sheets / Downloads Dayton Audio DCS165-4
Specification Sheet Dayton Audio DCS165-4 Data Files AddThis Sharing Buttons
Share to FacebookFacebook Share to TwitterTwitter Share to MoreAddThis 10

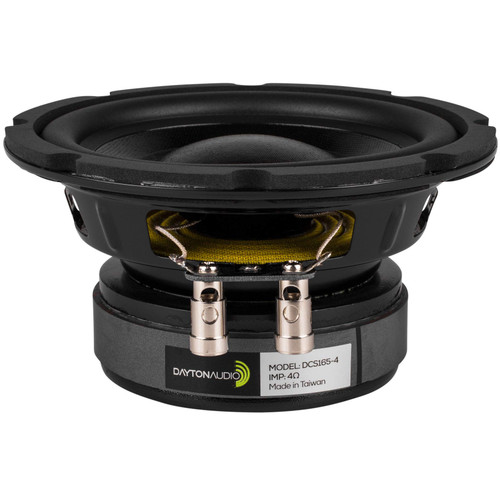

The Dayton Audio Classic Series subwoofers offer solid
value at lower price points. No compromises were made in the design,
materials, or construction of these rugged 4-ohm powerhouses. The drivers
feature a vented pole piece with copper cap, bumped back plate for improved
excursion capability, Kevlar reinforced paper cone with rubber half-roll
surround, and a high-temperature 4-layer copper voice coil wound on a
polyimide former. Product Details Speaker Series Classic Series Model Number
DCS165-4 List Price $55.99 Color Black Unit of Measure Each UPC
Warranty - Parts 5 Years Warranty - Labor 5 Years Product Shipping Weight
(lbs.) 4.85 Speaker Type Subwoofer Nominal Diameter 6.50" Power Handling (RMS)
100 watts Power Handling (max) 200 watts Continuous Program Power -- Impedance
4 ohms Sensitivity 87.4 dB @ 2.83V/1m Frequency Response 36 - 1 100 Hz Voice
Coil Diameter 38.5 mm Magnet Weight -- DC Resistance (Re) 3.4 Ohms Voice Coil
Inductance (Le) 1.43 mH @ 1 kHz Resonant Frequency (Fs) 35.7 Hz Mechanical Q
(Qms) 6.62 Electromagnetic Q (Qes) 0.36 Total Q (Qts) 0.34 Diaphragm Mass Inc.
Airload (Mms) 39.5g Moving Mass Of Diaphragm (Mmd) -- Mechanical Compliance of
Suspension (Cms) 0.5 mm/N Surface Area Of Cone (Sd) 124.7 cm² Volume of
Displacement (Vd) 74.8 cm³ BL Product (BL) 9.15 Tm Compliance Equivalent
Volume (Vas) 12.1 liters Maximum Linear Excursion (Xmax) 6 mm Drivers
Mechanical Losses (Rms) -- Cone / Diaphragm Material Paper / Kevlar Cone Entry
/ Exit Diameter -- Surround Material Rubber Voice Coil Wire Material Copper
Voice Coil Former Kapton®/Polyimide Basket/Frame Material Steel Magnet
Material Ferrite Overall Outside Diameter 6.57" Overall Depth 3.25" Baffle
Cutout Diameter 5.62" Mounting Holes 8 Mounting Hole Diameter -- Bolt Circle
Diameter -- Product Weight --
