Description

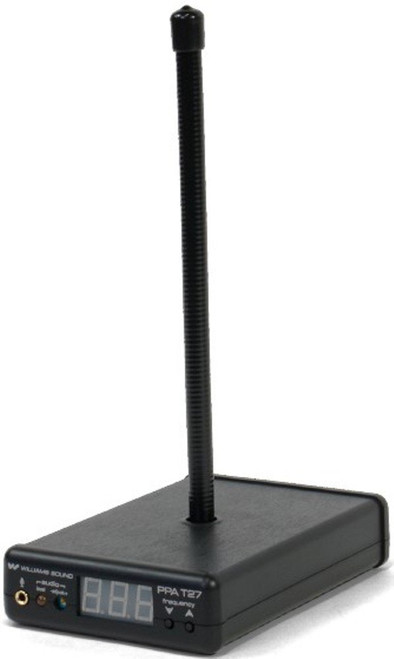

Williams Sound PPA T27 Personal PA Base-station Transmitter, Black, Simple
set-up and operation, High-contrast LED display and push-button frequency
selection, Up to 1000' operating rangeThe PPA T27 transmitter broadcasts a
speaker’s voice, music program or audio service wirelessly up to 1000 feet to
a listening audience. Audience participants can use an optional R37, R38 or
any FM receiver operating on the 72-76 MHz frequency to pick up the broadcast.
The speaker simply connects a microphone with a 3.5mm plug into the unit to
broadcast their voice. Unit also can connect to a sound system through a line-
level (RCA) jack to broadcast music or other audio service. This transmitter
will not broadcast in the U.S. FM Band of 88 to 108 MHz. Key Features High-
contrast LED display and push-button frequency selectionUp to 1000' operating
rangeFlexible 3.5mm mic and RCA line-level inputsFCC Part 15
compliantIncludes: (1) PPA T27 transmitter, (1) ANT 021 antenna, (1) WCA 013
audio cable and (1) TFP 036 power supply Specifications Dimensions:
4.1"Wx6.1"Lx1.3"HWeight: 7.8 oz.Power (U.S./Canada): 105-130 VAC, 50-60 Hz,
3.2 W at 120 VACFrequency Selector: External switches, 17 channels
(lockable)RF Field Strength: Does not exceed 80mV/m @ 3mModulation: FM, 75 kHz
deviation (wide–band) max.Stability: ± .005% over 0-50°CPre-Emphasis: 75
µSFrequency Response: 85Hz - 14kHz ±3dBDistortion: 1% Max. THDSignal to Noise
Ratio: 65 dB with R35 ReceiverMicrophone Input: 3.5mm mini phone jack,
supplies +DC for electret micsMic Input Level: 1–10 mV, nominalLine-Level
Input: RCA Jack, Hi Z, unbal.Line Input Level: .1–1 Vrms, nominalInput
Attenuator: Pot, screwdriver-adjustable
